Official product imageGWN7665

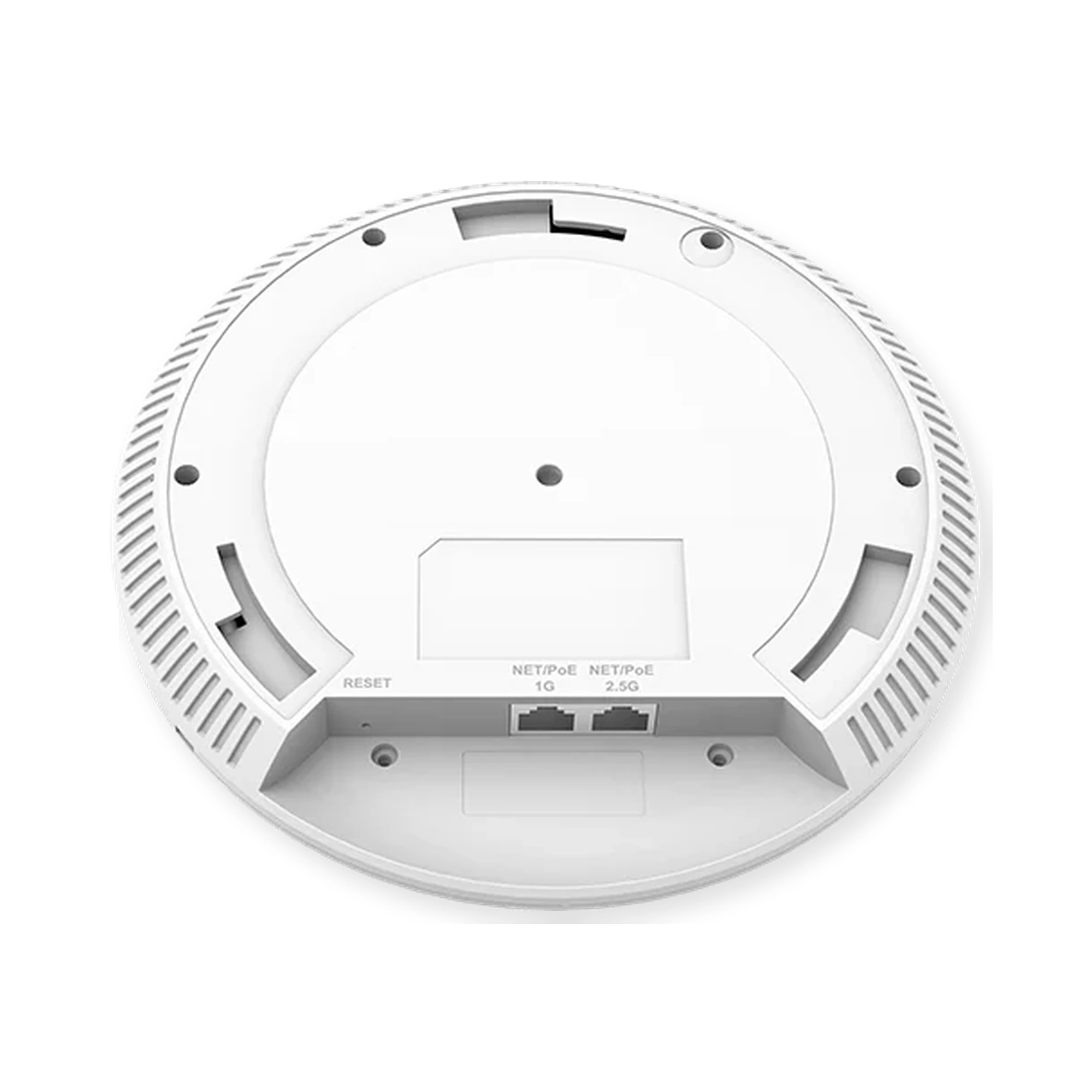

Ports and mounting base
Secondary image showing Ethernet interfaces and mounting details.

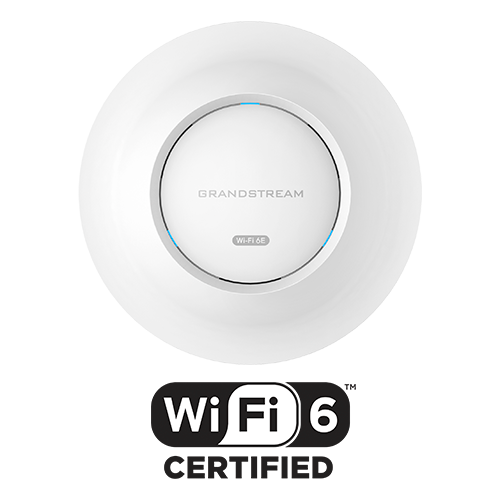

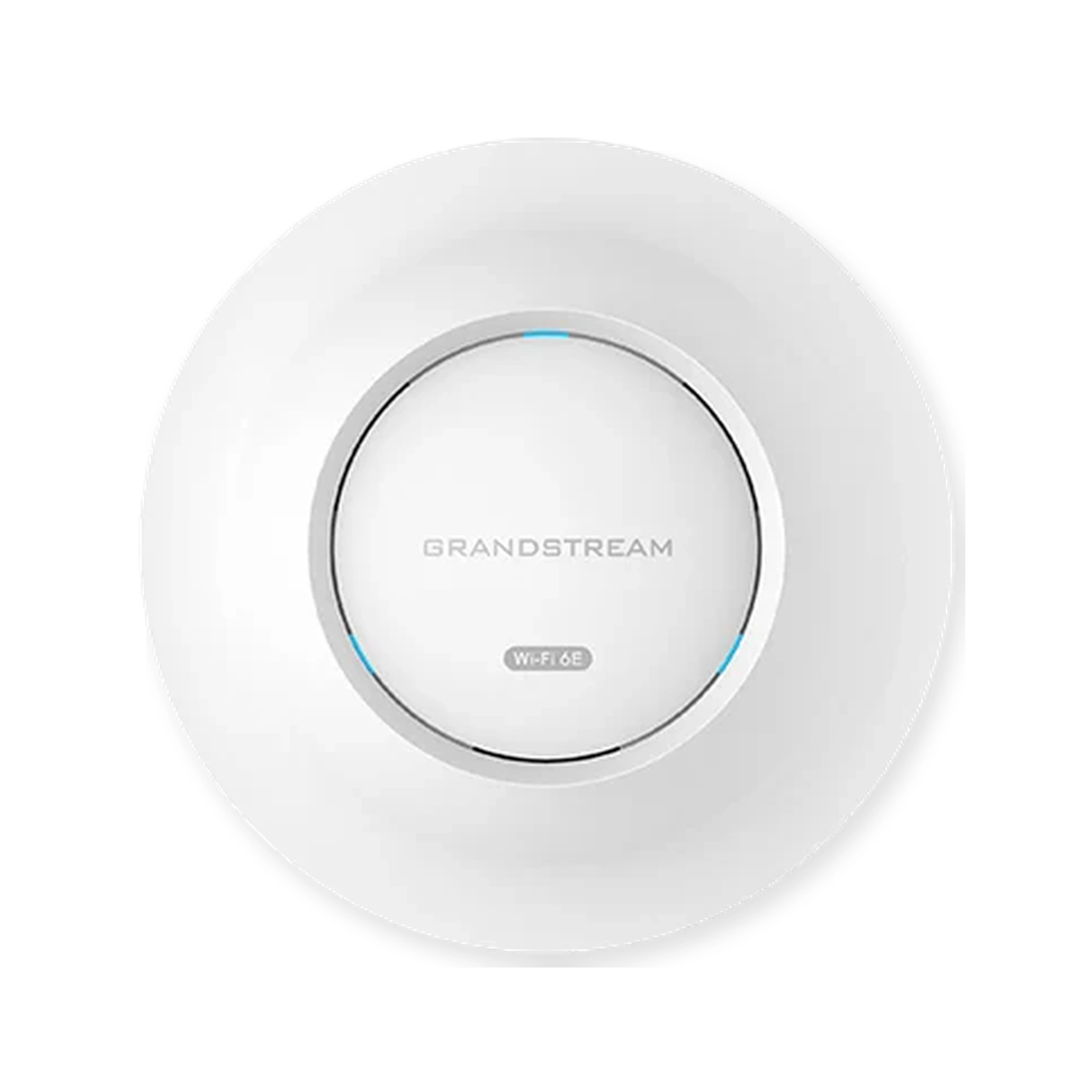

Grandstream GWN7665 Tri‑Band Wi‑Fi 6E Access Point
Model: GWN7665
A tri-band indoor access point for business and high-density sites, offering up to 5.4 Gbps aggregate throughput, a 2.5GbE uplink, and flexible centralized management.
5.4GbpsAggregate speed
384Clients
2.5GbEPrimary uplink
Key features
Tri-band Wi‑Fi 6E
Supports 2.4, 5, and 6 GHz bands for compatible devices.
Up to 5.4 Gbps
High aggregate wireless capacity for business applications.
384 clients
Designed for dense client environments with correct RF planning.
Multi-Gigabit ports
One 2.5GbE and one Gigabit Ethernet interface.
Flexible management
Embedded controller, GDMS Networking, and GWN Manager.
Business security
WPA3, secure boot, and multiple network policies.
Technical specifications
| Standard | Wi‑Fi 6E / 802.11ax |
|---|---|
| Bands | 2.4 GHz, 5 GHz, and 6 GHz |
| Aggregate throughput | Up to 5.4 Gbps |
| Clients | Up to 384 clients |
| Network ports | 1×2.5GbE and 1×1GbE |
| Power | 802.3at PoE+, approximately 22.5 W maximum |
| Management | Embedded controller, GDMS Networking, GWN Manager |
| Security | WPA/WPA2/WPA3 and secure boot |
| Dimensions and weight | 205.3×205.3×45.9 mm — approximately 765 g |
| Operating environment | Indoor, 0 to 50°C, 10–95% non-condensing humidity |
Recommended uses
- Corporate offices and multi-department workplaces.
- Hotels, clinics, and training centers.
- Medium- and high-client-density spaces.
- Guest networks and multiple VLANs.
- Sites that need centralized management and later expansion.
Installation requirements
- 802.3at PoE+ switch.
- Good Cat6 or Cat6A cabling, especially for 2.5GbE.
- Placement based on a coverage survey.
- Planned SSIDs, VLANs, guest access, and security.
- Speed and roaming validation after installation.
Compatibility
- Wi‑Fi 6E devices when 6 GHz is available.
- Wi‑Fi 6 and older clients on compatible bands.
- GDMS Networking, GWN Manager, and embedded controller.
- Multi‑Gigabit PoE+ switches.
Buying considerations
- Confirm local regulatory availability of 6 GHz.
- Expected users and concurrent applications.
- Availability of a 2.5GbE uplink.
- Site size and required AP count.
Warranty and support
Warranty duration, regional version, and installation scope are confirmed in the final quotation, with configuration, testing, and handover according to the project scope.
Related products
Frequently asked questions
Does it require a separate controller?
No. It includes an embedded controller and can also use GDMS Networking or GWN Manager.
Can it run on standard PoE?
The official full-power requirement is 802.3at PoE+.
Will it cover 175 meters indoors?
That is a nominal open-area figure; walls, interference, and placement reduce actual coverage.
Is the GWN7665 suitable for your site?
Send the site area, floor count, user count, and application requirements so the network and installation scope can be reviewed before deployment.
