Product imageSSA 800

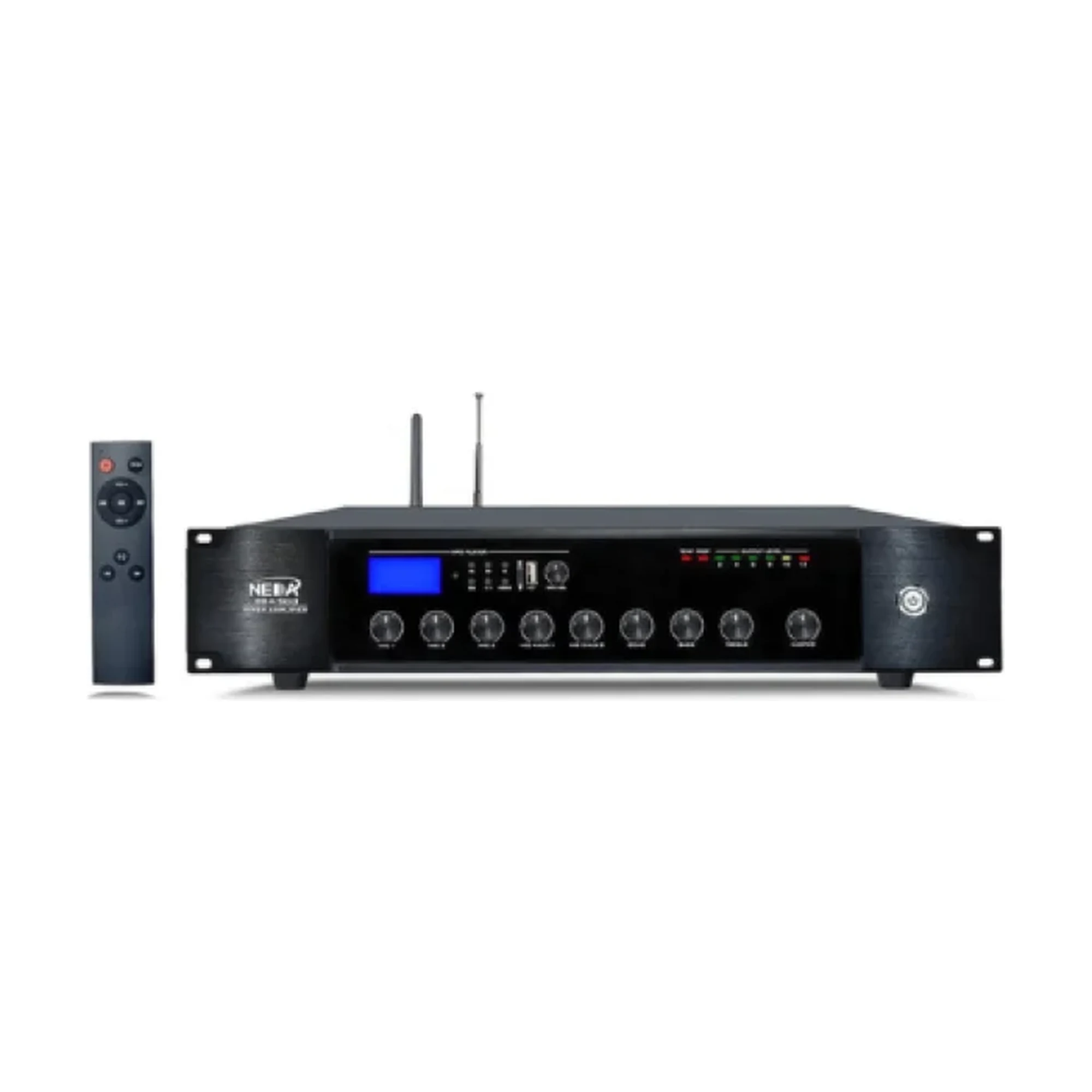

NEDA SSA-800 Professional 800W Amplifier
Model: SSA 800
NEDA SSA-800 800W amplifier with Bluetooth, USB, FM, TF, HDMI, five microphone inputs and 50/70/100V plus 4–16Ω outputs. Request a system design in Riyadh.
NEDAABrand
SSA 800Model
CamerasCategory
Key information
Power
800 watts
Inputs
5 microphone, 2 AUX, AV and HDMI
Playback
Bluetooth, USB, FM and TF
Microphone 1
Priority and 48V phantom power
Speaker outputs
4–16Ω and 50/70/100V
Frequency response
50Hz–16kHz
Available technical specifications
| Power | 800 watts |
|---|---|
| Inputs | 5 microphone, 2 AUX, AV and HDMI |
| Playback | Bluetooth, USB, FM and TF |
| Microphone 1 | Priority and 48V phantom power |
| Speaker outputs | 4–16Ω and 50/70/100V |
| Frequency response | 50Hz–16kHz |
| Power supply | 220–240V AC and 12V DC / 5A |
| Unit weight | 19.3 kg |
Use and planning
- Large mosques and halls
- Schools and campuses
- Hotels and commercial centres
- Public-address systems with many speakers
Before confirming the order
The exact version, compatibility and quantity are confirmed in the quotation before supply.
Service scope
- Confirming model and quantity before supply.
- Installation, configuration and testing according to the quotation scope.
- Documented handover and user guidance when included.
Verification before supply
- Review the version and region before ordering.
- Confirm compatibility with existing equipment.
- Approve final specifications in the quotation.
Warranty and support
Warranty duration, regional version and installation scope are confirmed in the final quotation, with configuration, testing and handover provided according to the project scope.
Related products
Frequently asked questions
Does the SSA-800 support 100V lines?
Yes. It supports 50V, 70V and 100V lines as well as 4–16Ω outputs.
Can it power a condenser microphone?
The datasheet lists 48V phantom power on microphone input 1.
Is it automatically suitable for a large project?
Speaker loads, zones, cabling and ventilation must be calculated before confirming suitability.
Is SSA 800 right for your project?
Send the site requirements and required quantity so we can review compatibility and equipment before preparing the quotation.
