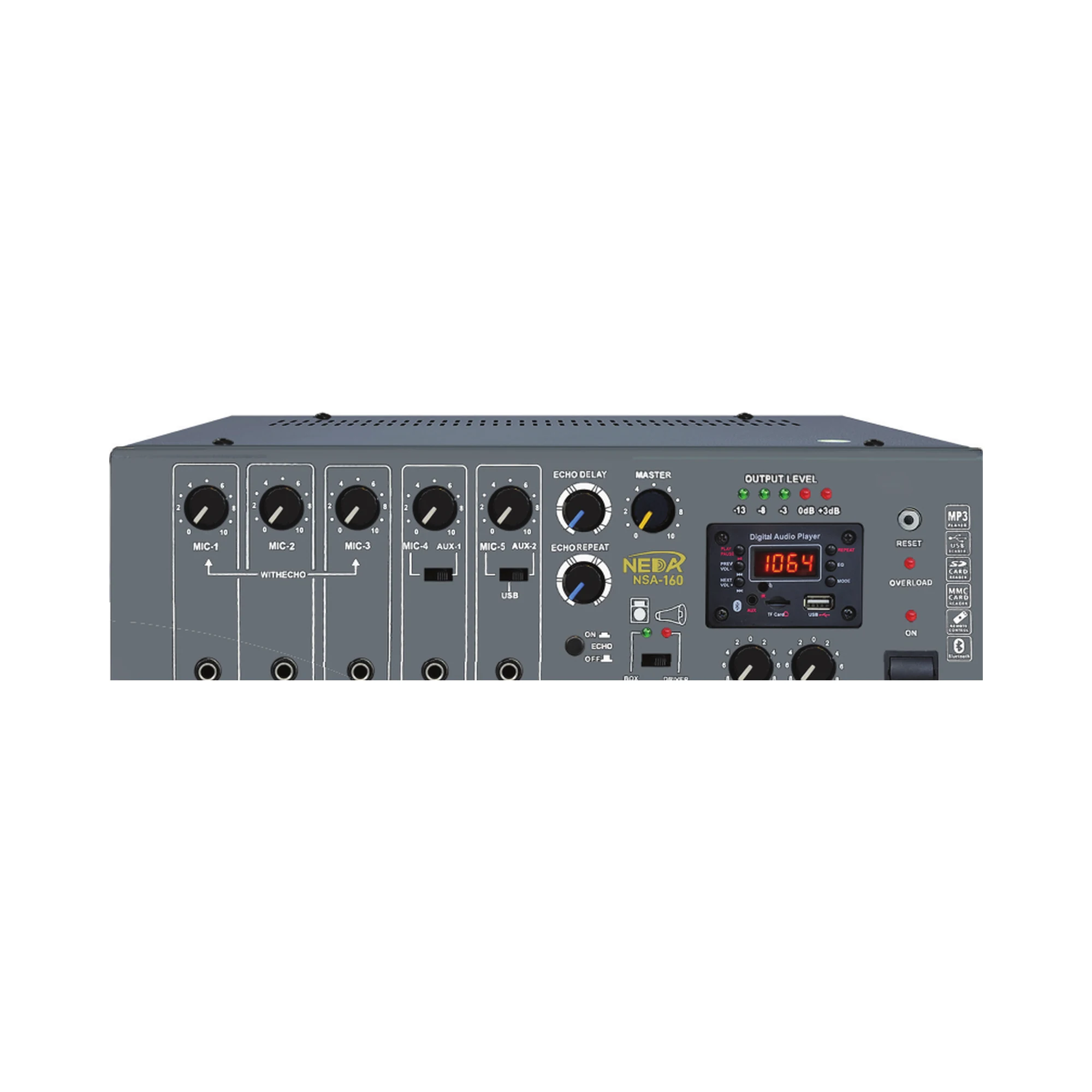

NEDA NSA-160 160W Mixer Amplifier
Model: NSA 160
NEDA NSA-160 160W mixer amplifier with Bluetooth, USB, FM, TF and remote, five microphone inputs and 4/8/16Ω plus 100V outputs. Request a technical design in Riyadh.
NEDAABrand
NSA 160Model
CamerasCategory
Key information
Power
160 watts
Inputs
5 microphone plus 2 AUX
Playback
Bluetooth, USB, FM and TF
Speaker outputs
4/8/16Ω and 100V line
Frequency response
50Hz–15kHz
Power supply
220–240V AC and 12V DC
Available technical specifications
| Power | 160 watts |
|---|---|
| Inputs | 5 microphone plus 2 AUX |
| Playback | Bluetooth, USB, FM and TF |
| Speaker outputs | 4/8/16Ω and 100V line |
| Frequency response | 50Hz–15kHz |
| Power supply | 220–240V AC and 12V DC |
| Dimensions | 420 × 335 × 150 mm |
| Unit weight | 11.7 kg |
Use and planning
- Mosques and meeting halls
- Retail and hospitality sites
- Schools and training centres
- Medium-duty public-address systems
Before confirming the order
The exact version, compatibility and quantity are confirmed in the quotation before supply.
Service scope
- Confirming model and quantity before supply.
- Installation, configuration and testing according to the quotation scope.
- Documented handover and user guidance when included.
Verification before supply
- Review the version and region before ordering.
- Confirm compatibility with existing equipment.
- Approve final specifications in the quotation.
Warranty and support
Warranty duration, regional version and installation scope are confirmed in the final quotation, with configuration, testing and handover provided according to the project scope.
Related products
Frequently asked questions
Does the NSA-160 support a 100V line?
Yes. It supports a 100V line as well as 4, 8 and 16-ohm outputs.
How many microphone inputs are provided?
The datasheet lists five microphone inputs plus two AUX inputs.
Can it operate from 12V DC?
The datasheet lists 12V DC support alongside AC; source requirements must be confirmed before deployment.
