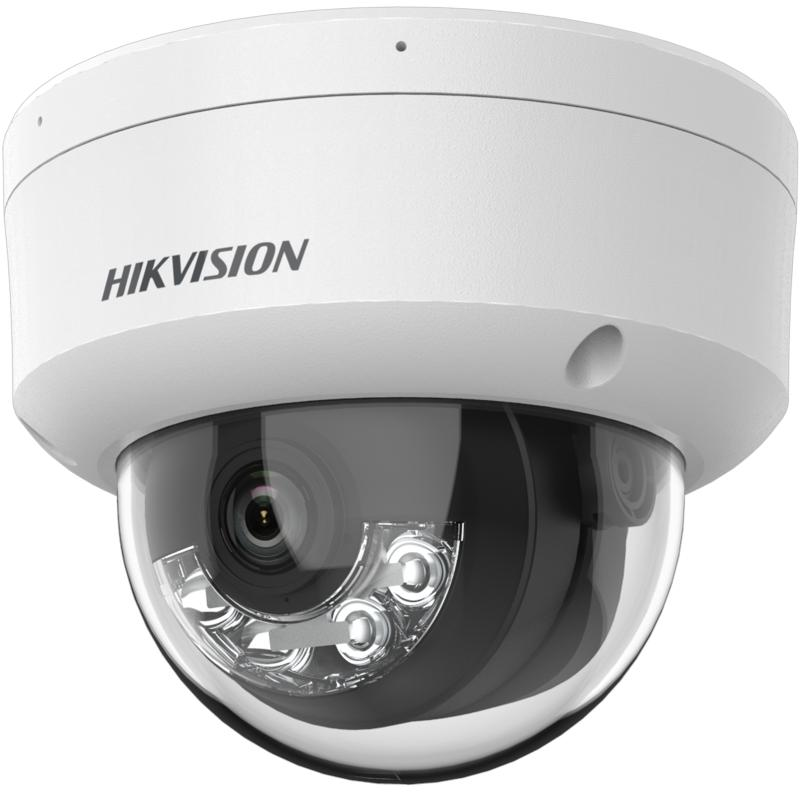

Official product imageDS-2CD1183G2-LIU

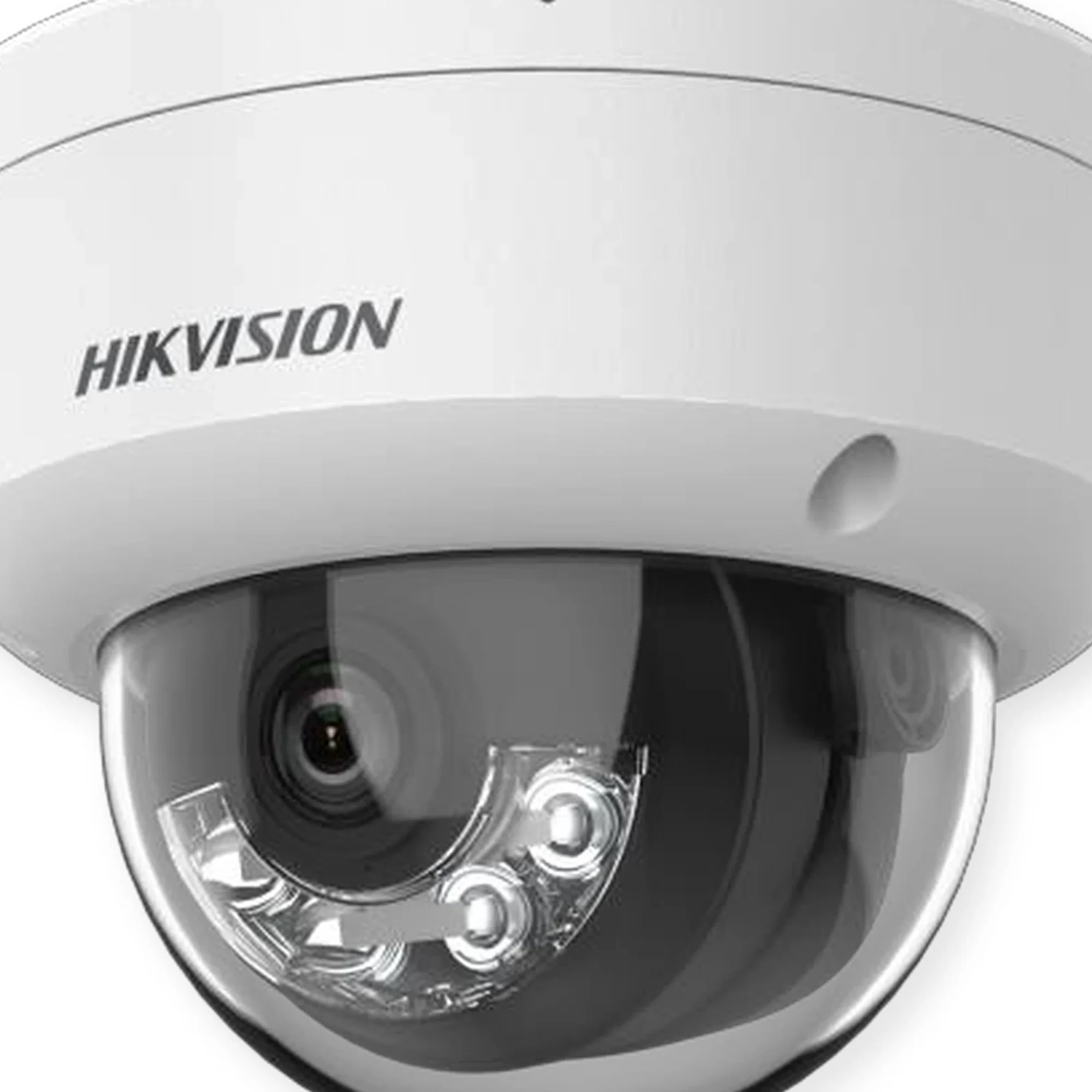

Camera housing detail
A crop of the official product image showing the dome housing.

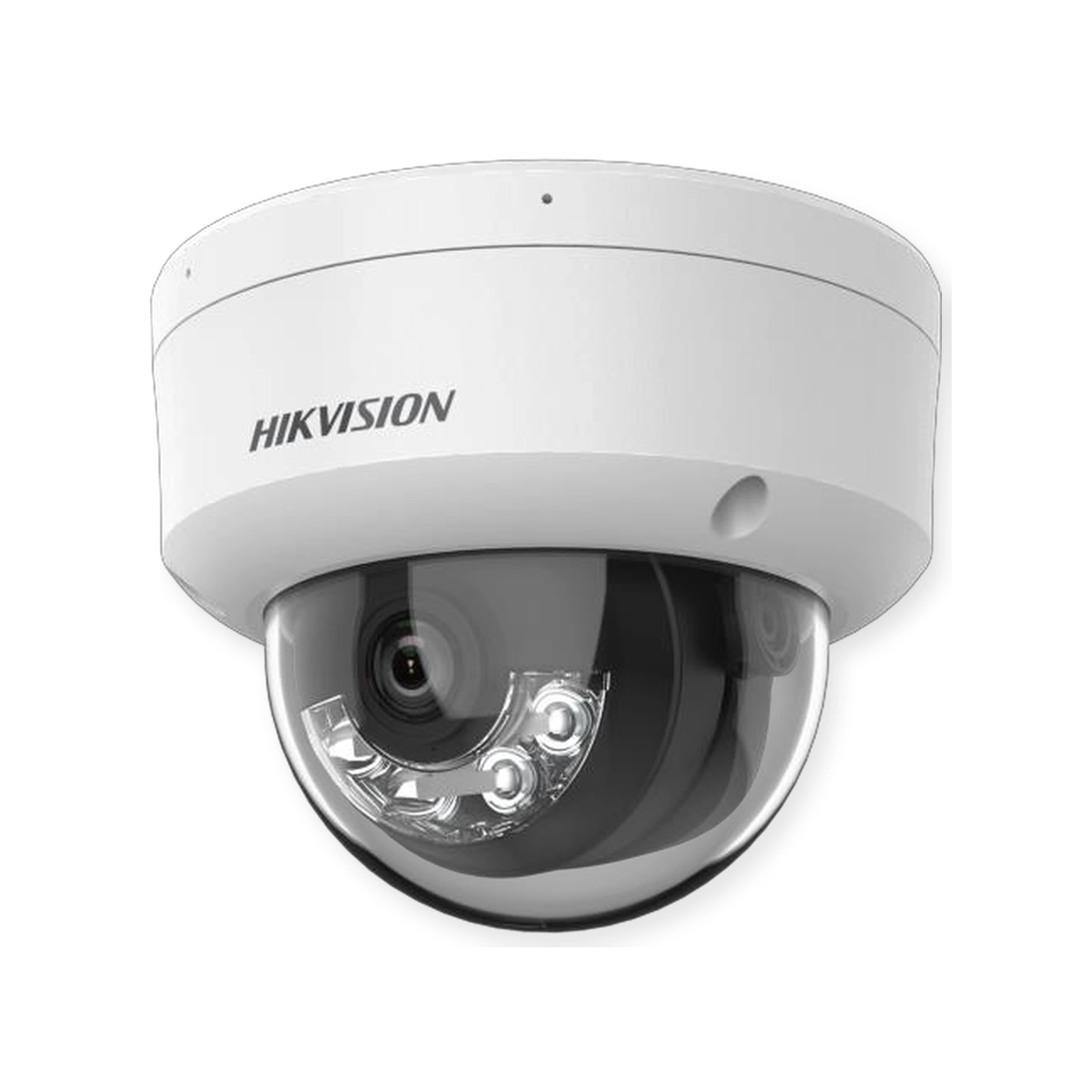

Hikvision DS‑2CD1183G2‑LIU 8 MP Fixed Dome Network Camera
Model: DS-2CD1183G2-LIU
A fixed dome IP camera for indoor and outdoor surveillance, combining 4K detail, audio, and intelligent supplemental lighting.
8 MPResolution
30 mLight range
IP67/IK08Protection
Key features
8 MP resolution
Up to 3840×2160 imaging.
Smart Hybrid Light
IR and white supplemental light up to 30 m.
Human and vehicle detection
Helps reduce irrelevant motion alerts.
Built-in microphone
Captures real-time audio with video.
120 dB true WDR
Improves scenes with strong contrast.
Outdoor protection
IP67 weather resistance and IK08 impact protection.
Technical specifications
| Sensor | 1/2.7-inch progressive scan CMOS |
|---|---|
| Maximum resolution | 3840×2160 |
| Lens | 2.8 mm or 4 mm |
| Field of view | 113° at 2.8 mm; 90° at 4 mm |
| Supplemental light | IR and white light up to 30 m |
| Frame rate | 12.5 fps at 50 Hz or 15 fps at 60 Hz at 8 MP |
| Compression | H.265+/H.265/H.264+/H.264 |
| Audio | Built-in microphone |
| Network and power | 10/100 RJ45, 12 VDC or 802.3af PoE |
| Dimensions and protection | Ø121.5×97.6 mm, IP67 and IK08 |
Recommended uses
- Entrances and corridors.
- Offices and retail.
- Villas and residences.
- Outdoor surveillance areas.
Installation requirements
- Cat6 and PoE.
- Select 2.8 or 4 mm lens.
- Set the mounting angle.
- Calculate storage and bitrate.
Compatibility
- 8 MP-capable NVRs.
- Hik‑Connect and iVMS‑4200.
- ONVIF subject to version features.
- PoE or 12 VDC.
Buying considerations
- Required field of view.
- Recorder decoding capacity.
- Need for onboard storage.
- Suitability of white light.
Warranty and support
Warranty, lens, and regional suffix are confirmed in the final quotation. Do not claim microSD support for the base LIU unless the F suffix is confirmed.
Related products
Frequently asked questions
Does it record audio?
Yes. It includes a built-in microphone.
Is it suitable outdoors?
Yes, with correct installation, due to IP67 and IK08 ratings.
Does it support microSD storage?
The microSD slot is associated with the LIUF version; confirm the full suffix before ordering.
Is this camera suitable for the site?
Send the viewing angle, distance, and recording requirements so the lens and storage can be reviewed.
